Technical Details
- Residential and Commercial Application.
- Integral Snap-Lock Standing Seam.
- 13-7/8″ or 17-7/8″ nominal width (13-7/8″ nominal width standard)
- Can be made in lengths from 3 feet to 40 feet. (lengths over 30′ are recommended in 24 gauge steel only & have an additional crating charge)
- Used on roofs with pitches of 3/12 or above
- 26 gauge AZ50 Galvalume steel Standard
- Available in over 60 colors. (See color chart/matrix below)
- .032 Aluminum, 22 ga., or 24 ga premium steel w/Kynar® paint and 26 gauge premium steel w/Textured Paint or Low Gloss paint available. (500 lin. ft min. order)
- Limited Lifetime Paint and Steel Warranty
- Nine in-stock 26 gauge colors (See color chart above)
- Five in-stock 24 ga. PVDF colors (Regal White, Matte Black, Aged Bronze, Charcoal Gray & Dove Gray/Cityscape)
- Current Lead Time: Please call
*View the color chart matrix below for the colors available in this profile.

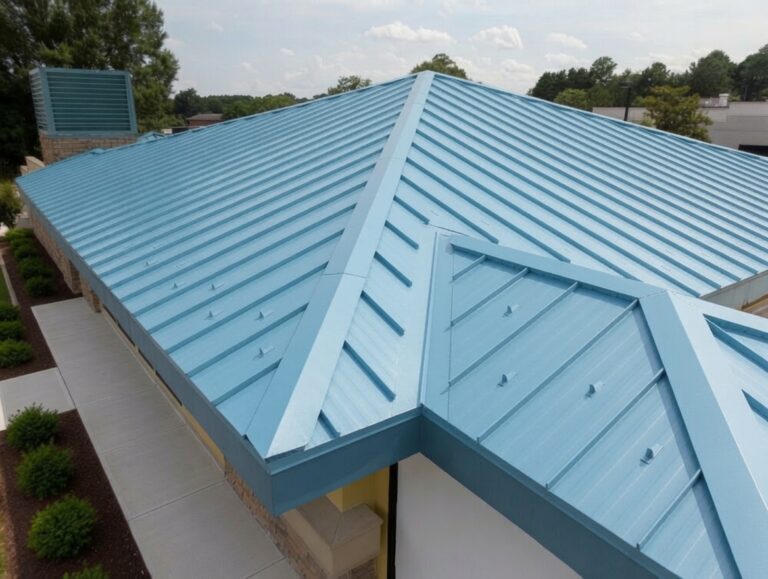

The Hardy Clip 175 Standing Seam Panel is a premium hidden-fastener roofing system designed for strength, performance, and a sleek architectural appearance. Secured with clips rather than exposed fasteners, this panel allows for natural thermal movement, helping to minimize oil canning and extend roof life.
Compared to the Legacy Hardy Clip profile, the Hardy Clip 175 features a taller rib height and narrower seam, delivering a stronger panel and a more contemporary look. Panels are available in 13-7/8″ or 17-7/8″ widths and can be roll-formed in steel up to 22 gauge for added durability and rigidity.
Unlike traditional nail-fin standing seam panels commonly used in residential applications, the Hardy Clip 175 utilizes a 1-3/4″ integral snap-lock seam with clip attachment, allowing the panel to expand and contract freely with temperature changes. For maximum performance and reduced oil canning, upgrading to 24 or 22 gauge steel is recommended.
The Hardy Clip 175 is suitable for installation on roof slopes greater than 3/12, making it an excellent choice for both residential and light commercial projects seeking a high-end standing seam solution.
Quartz Textured Paint Finish
Durable. Distinct. Designed to Perform.
The Quartz Textured Paint System delivers a premium finish that combines exceptional performance with striking visual appeal. This advanced textured coating is engineered for metal roofing and siding applications, providing superior durability, scratch resistance, and long-lasting color retention.
Featuring a low-gloss, matte texture, the Quartz finish reduces glare while enhancing depth and definition, giving your metal panels a refined architectural look. Built to withstand harsh weather, UV exposure, and environmental wear, this finish maintains its beauty for years with minimal maintenance.
Key Features:
Textured Matte Finish: Adds dimension and aesthetic appeal while reducing surface glare.
Superior Durability: Resistant to fading, chalking, and scratching.
Weather-Tested Protection: Formulated to perform in extreme climates and environments.
Enhanced Color Stability: Maintains consistent color over time for lasting curb appeal.
Ideal for Roofing & Siding: Perfect for residential, commercial, and agricultural applications.
Whether you’re building new or upgrading an existing structure, Quartz Textured Paint offers the perfect balance of style, performance, and longevity—making your metal roof stand out with subtle sophistication.
Additional Product Information
MMMS 26/24 Gauge Steel In-Stock Color Chart and Matrix (PDF)
Quartz 26ga Textured Paint Color Chart (Special order) (JPG)
Ultra Clad Color Chart Special Order 22 ga & 24 ga Steel colors (PDF)
ELM Special Order 0.032″ Aluminum Colors(PNG)
Sheffield Metals Special Order 22 ga, 24ga Steel & .032 Aluminum Kynar Colors(PDF)
Sheffield Metals Low Gloss 26ga Steel Colors (PDF)
Available standard trims (PDF)
Installation Guide (PDF)
